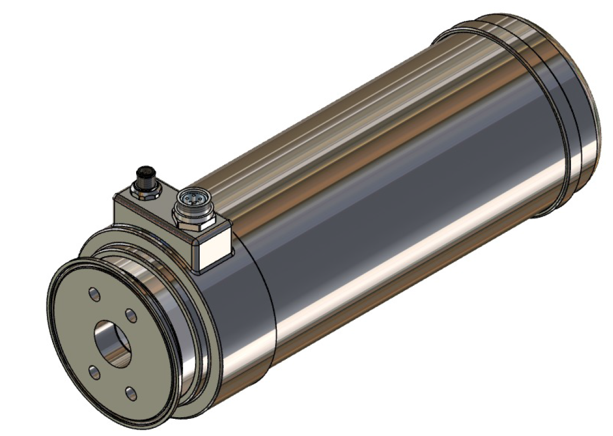

The CANTY BioCam™ is a process camera engineered and designed for sanitary applications. The
BioCam™ combines the latest in LED lighting with Ethernet camera technology in a streamlined package. The camera utilizes built-in strobe LED light that has been optimized to run efficiently as to not obstruct photosensitive processes. The all-inone design is both compact and sanitary and unlike its predecessors requires no additional external power supply for operation. A built in heater eliminates condensation from forming on the glass and provides for a clear image at all times. Coupled with the Canty Vector Control Module, the BioCam™ can be used for full control via OPC or 4-20mA.
The CANTY BioCam™ is uniquely qualified to view inside your fermentors and bioreactors and provides a continual control signal allowing the user to meter in antifoam. The BioCam™ is an Ethernet based imaging system which connects to the CANTY VCM™ image processor that determines the percentage of foam on the surface of the liquid. The foam control function allows for significant savings of antifoam, improves process performance in cell culture growth and eliminates the need for additional antifoam fluids in purification.
Product Features
- Built in LED light source – maintenance free
- Compact all-in-one design
- Sanitary 316L S.S. Housing
- No external power supplies required
- Available in 24V DC, 120V AC, 230V AC
- Strobed light allows for optimized illumination without interfering with photosensitive processes
- Built in heater to prevent fog and condensation
- One-piece streamlined design
- System outputs via OPC or 4-20mA to a DCS or PLC for complete, closed-loop control
- Ideal system for foam detection – Canty Vector Control Module can output and control the addition of anti-foam
- Single use models also available
Applications
- BioTech Reactors, Fermentors and Sterilizers
- Sterile Process Vessels
- Aseptic Tanks
- Sanitary Areas and Glove Boxes
- Portable Tanks
- Freeze Dryers
Specifications
- Power Req: 24V DC
- Housings: NEMA 4X Sanitary, IP 66, 316L S.S. construction
- Wetted Materials: Alloy C-276
- Surface Finishes: 20uin Ra standard. Also available in 15uin Ra with electropolishing as an option.
- Connection: 4” Tri-Clamp® / 4” NA-Connect®
- Cabling Supplied: 8-Conductor 33 ft. [10 m] 24 AWG stranded/tinned quick connect Ethernet cord, 4-Conductor 19 ft. [6 m] 16 AWG stranded quick connect power cord.
