Phase Split Detetion
Phase split (Liquid-Liquid or Liquid-Emulsion phase separation) is monitored by process operators whereby there usually is a valve that needs to be shut off to cleanly separate the 2 liquids in the process (or liquids and emulsions).

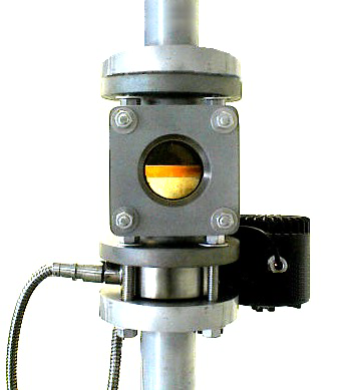

The key to Canty Camera/Light combination systems is the Canty light. Canty uses fiber optic light guides to
focus cool, effective light into a process vessel or area. Cool light eliminates product bake-over on the viewing
window. Fiber optic light guides have been specifically designed to work in conjunction with cool light to maximize the light transmission into the vessel. The resulting live, remote video image from this illumination is unparalleled!
Applications
- Continuous Or Batch Options
- Non-Contact
- Visual Verification
- Detect and measure all three phases – Organic liquid A from aqueous liquid B and Emulsion of A & B
- No Coating Issues
Features
- This system provides the ability to remotely view a process that may not normally be watched. Multiple viewing stations may be linked to the system output so various departments may monitor a process. Customers may purchase video monitors, amplifiers or screen splitters to enhance the system.
- Ethernet systems allow the additional functionality of being able to remotely view through a Gigabit network system. Users can have access to live system images from their office networked computer.
- CANTYVISIONCLIENT™ software is available for customers that require additional functionality over simple viewing of a live image. Liquid level, color of different phases, and visual verification. System verifies the color of fluid in phase split and sends an output signal locating specific points of the interface. All measurements can be recorded and archived for a historical record.
Specifications
- Video Format: Gigabit Ethernet, EIA, CCIR, NTSC, PAL
- Cable: Ethernet cameras require CAT6e or better cabling. RG59/U, RG11/U, RG6/U coaxial cable suitable for CCTV applications is recommended for analog cameras.
- Power Req.: User supplies 120 VAC, 60 Hz or 230 VAC, 50 Hz power. Canty supplies transformer to 12 VDC, .5A Typ.
- Ratings: NEMA 4x, IP66, EXP, FP
- Connections: ANSI / DIN
