Combustion atmospheres using dirty fuels require a thermal imaging solution with advanced spectral filtering and high resolution to deliver clear live images from within a furnace, boiler or incinerator.

The MWIR-B-640 provides a continuous and clear view, even through heavy smoke and hot furnace atmospheres, which is not possible when using visual camera systems.

The MWIR-B-640 allows highly accurate and fully radiometric temperature measurement image data to be taken, stored, and trended over the lifetime of the furnace or boiler.

The advanced IMAGEPro thermal imaging and data processing software supports long term data trending and enables the early detection of leaks and temperature variations to help optimise processes.

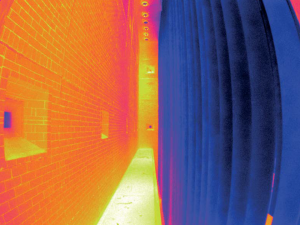

Operators have a clear view of the critical areas within the furnace or boiler with more than 300,000 accurate point temperatures, measuring in the range of 300-1200 °C (572-2192 °F) and 500-1800 °C (932-3272 °F). Providing advanced digital communications via the IMAGEPro software, the performance of the furnace or boiler can be monitored to easily identify hot and cold areas and any uneven heating can be viewed in real-time from the safety of the control room.

The high-resolution image, combined with the wide-angle field of view (90°), allows multiple areas to be imaged and measured simultaneously.

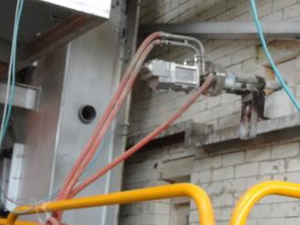

The MWIR-B-640 uses proven thermal imaging technology to accurately and continuously profile the temperatures within the furnace or boiler providing improved data accuracy through automation and minimising risk to personnel by reducing the need for personnel to be in the hazardous area around the furnace or boiler.

MWIR-B-640 is ideal for applications in Steam methane reformers, reheat furnaces, biomass boilers, coal boilers, cement (kiln furnaces), heat treatment and annealing furnaces.

SPECIFICATION HIGHLIGHTS
MID-TEMPERATURE:300-1800 °C / 572-3272 °F
MID-WAVELENGTH:LWIR 3.9 μm
TEMPERATURE RANGE:300-1200 °C / 572-2192 °F 500-1800 °C / 932-3272 °F
Spectral Response:3.9 μm
Pixel Resolution:640 x 480 pixels
Frame Rate:60 Hz / 9 Hz
Optics (FOV):90° x 67.5°
Interfacing:Gbit-Ethernet / PoE
I/O Options:I/O-modules and digital interfacing via IMAGEPro
Smart Functions:Integrated Webserver
ADVANCED SPECTRAL FILTERING

Enabling a clear view through dusty/smoky and hot furnace atmospheres, working in the midwave Infrared range

HIGH-TEMPERATURE MEASUREMENT ACCURACY

Enables optimum furnace and boiler control through enhanced process thermal imaging

ADVANCED IMAGE PROCESSING SOFTWARE

Control, monitor, analyse and capture data from the thermal imaging camera with IMAGEPro

REAL-TIME THERMAL DATA COMBINED WITH HIGH-RESOLUTION, LOW NOISE VISUAL IMAGE

This allows for true real-time furnace optimisation and the opportunity to improve energy efficiency without degrading furnace/boiler lifetime

SAFE 24 HOUR, 7 DAY MONITORING

Guarantees accurate, reliable data from a safe remote position without risk to the operators

Auto Retraction Systems

Designed to auto-retract and protect the thermal imager from damage by overheating in the event of loss of water flow, air pressure, electricity supply or high borescope tip temperature alarm.

The MWIR-B-640 is an invaluable tool in optimising production throughput, reducing energy consumption, and extending boiler or furnace campaign life.
