Measuring in a range from 600 to 2000°C (1112 to 3632°F), the NIR-Borescope-640 (NIR-B-640) provides a high-resolution thermal image with real-time, continuous, high-accuracy temperature readings.
It utilises the latest wide dynamic range imaging technology, providing the highest available temperature reading accuracy over the entire wide temperature range, for accurate, continuous temperature profiling of the furnace and stock.
The NIR-B-640 uses advanced near-infrared spectral filtering to provide a clear view into the furnace gases, allowing highly accurate temperature measurement point data to be taken, stored, and trended over the lifetime of the furnace.
An advanced near infrared spectral filtering system provides a clear view through the furnace gases, allowing highly accurate temperature measurement point data to be taken, stored and trended over the lifetime of the furnace.
With specially designed image and data processing software that supports long-term data trending, the NIR-B-640 is ideal for applications in cement kiln and cyclone furnaces, reheat furnaces, continuous casting (zone 1), heat treatment and annealing furnaces.
SPECIFICATION HIGHLIGHTS | |
---|---|
HIGH-TEMPERATURE: | 600 to 2000 °C / 1112 to 3632 °F |
SHORT-WAVELENGTH: | LWIR 1 μm |
TEMPERATURE RANGE: | 600 – 2000 °C / 1112 – 3632 °F (Wide Dynamic Range) |
Spectral Response: | 1 μm |
Pixel Resolution: | 640 x 480 pixels |
Frame Rate: | 11 Hz |
Optics (FOV): | 44° x 33°, 90° x 67.5° |
Interfacing: | Gbit-Ethernet |
I/O Options: | I/O-modules and digital interfacing via IMAGEPro |
WIDE MEASUREMENT RANGE
Utilising AMETEK Land’s latest wide dynamic range imaging technology, the NIR-B-640 can accurately measure ‘cold’ and ‘hot’ areas in one frame or image. This allows the entire process to be monitored without switching to different temperature ranges during operation.
MULTI-VIEW AREA

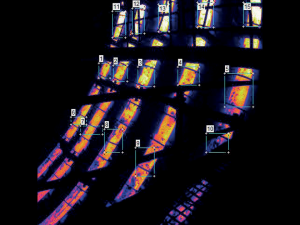

The high-resolution image, combined with the wide-angle (90o) field of view, allows multiple areas in the lane to be imaged and measured simultaneously. With advanced digital communications, the image and data can be viewed in real-time in a safe area control room.
ADVANCED IMAGING SOFTWARE
The performance of the furnace can be monitored and optimised through the IMAGEPro thermal imaging software package. This easily identifies hot and cold areas and visualises uneven heating, with corrections viewed in real time.
The NIR-B-640 is AMETEK Land’s thermal imaging solution for prolonging furnace lifetime, optimising production throughput, reducing energy consumption and improving stock temperature.
