Power, Safety & Control

Containerized BESS

Monitor thermal, humidity, airflow, electrical and leak conditions inside containerized battery energy storage systems.

Measures: Temperature · Humidity · Differential pressure · Explosion venting

Used in:Power Generation
Diagram of the measuring points in a containerized bess 12345
Click a number to jump to that measuring point. Conceptual view, not for installation design.
1

Container Temperature & Humidity

Sensors monitor temperature and humidity levels within the container to prevent thermal runaway and condensation.

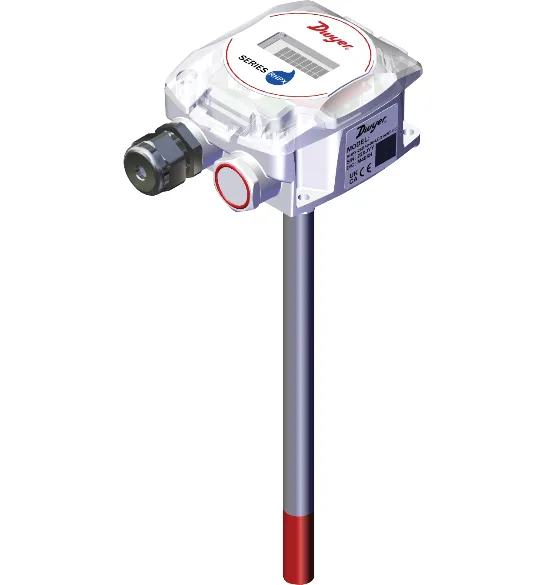

Dwyer Series RHPX Humidity and Temperature TransmitterMeasures RH/Absolute RH/Dew Point; 2% & 3% Accuracies; Passive Temperature Sensors; Indoor/Outdoor Enclosures
2

Enclosure Ventilation Airflow

Confirms supply air velocity and volumetric flow through the ventilation duct that keeps the enclosure within its thermal envelope.

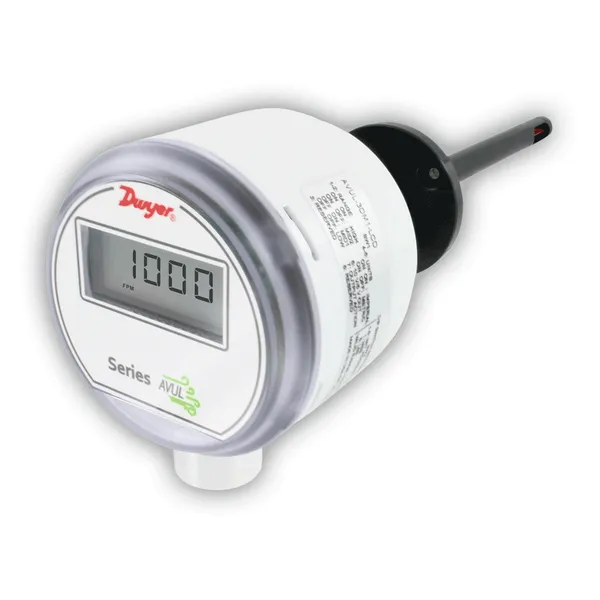

Dwyer Series AVUL Air Velocity or Volumetric Flow TransmitterMeasures Air Velocity; 3% or 5% Accuracy; Current & Voltage Outputs; Optional BACnet & Modbus Protocols
3

Filter & Ventilation Differential Pressure

Monitors pressure drop across filters and fans to flag loading, blocked intakes or stalled ventilation.

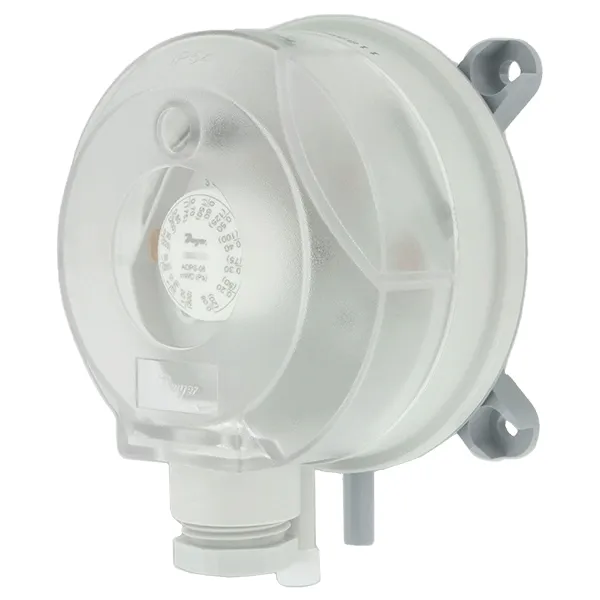

Dwyer Series EDPS Adjustable Differential Pressure SwitchEasy pressure adjustment with gauge; Low cost for BAS/HVAC duct control; Relay contact for DDC integration; Filter monitoring, fluid measurement
5

Explosion Venting

Explosion vents made for battery energy storage enclosures relieve the overpressure from thermal runaway gases and deflagrations, supporting NFPA 855, NFPA 68 and NFPA 69 compliance.

Explosion Vents and PanelsAn explosion can result from an ignition of a combustible gas, mist or dust when mixed with air during processing, handling or storage operations. A rapid rise in pressure occurs in the containing structure, and if it is not of adequate…

Application data from the DwyerOmega Application Navigator ↗. Ronsor can help adapt it to your site.
