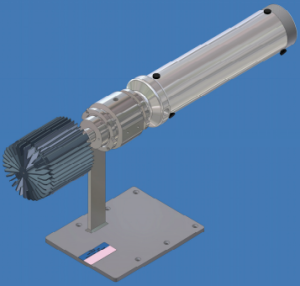

The Canty TRUFLOW™ has been engineered to offer the user a means by which a liquid is analyzed while under varying pressures, temperatures and flow rates.

It offers sample or continuous, microscopic, non-destructive viewing and provides particle size analysis with two dimensional results when used in conjunction with the CantyVisionClient™ Software.

The vision system, with integral lighting, features precision optics designed to enhance the image prior to display or analysis. The image sensor is a high resolution / high speed CCD camera coupled to a microscopic lens system. The system offers zoom and focus ability, variable lighting, and multiple objective lens packages to cover a range of sizes.

The TRUFLOW™ features the FUSEVIEW™ window as the product contact barrier. Our unique fused glass windows far exceed all other glass windows in safety and performance allowing for high pressure ratings. The fused glass provides a flush finish, without the pocketing found in other mechanical seals which disturb the flow pattern and particle distribution and can damage or deform particles.

  • Particle Size, Shape and Distribution with Real Time Analysis
  • Fused Glass Pressure Barrier Standard
  • Rated 500 PSI @ 400 Deg. F., Options through 6,000 PSI.
  • Cold Back Light Eliminates Heating of the Sample Even at High Outputs which are Required for High Shutter Speed Viewing.
  • CCD Based High-Speed Imaging Device
  • Adjustable Gap Option
  • Regulated Temperature Option
  • On-Line or Lab Plus (remote control)
  • 1/4 Inch NPT Connections Standard
  • Multiphase Oil Characterization
  • Polymer Bead Growth and Shape Analysis
  • Mining and Aggregate Particle Size
  • Centrifuge Effluent and Screen Break Detection
  • In-Line Particle Size for Process Control
  • Gel, Emulsion and Bubble Classifier
  • Percent Solids / Turbidity
  • End Product Quality Control and Lot Certification
  • Crystal Growth Analysis
  • Replace Laser and Sieve with Two Dimensional Distribution by Shape
  • Video Formats: Gigabit Ethernet, EIA, CCIR, NTSC and PAL
  • Shutter Speed: Variable Up to 10 micro Seconds
  • Ratings: Lab, NEMA 4 Weather Proof, Explosion Proof or Flame Proof
  • Particle size: .7 micron to 3000 micron
  • Connections: NPT, Tube or Sanitary
  • Input power: 120 V AC 60Hz or 230 V AC 50Hz
  • Cable: RG59/U, RG11/U, RG6/U Coaxial Cable Suitable for CCTV Applications is Recommended for Analog Cameras. Gigabit Ethernet Cameras require CAT6 or Better Cabling
