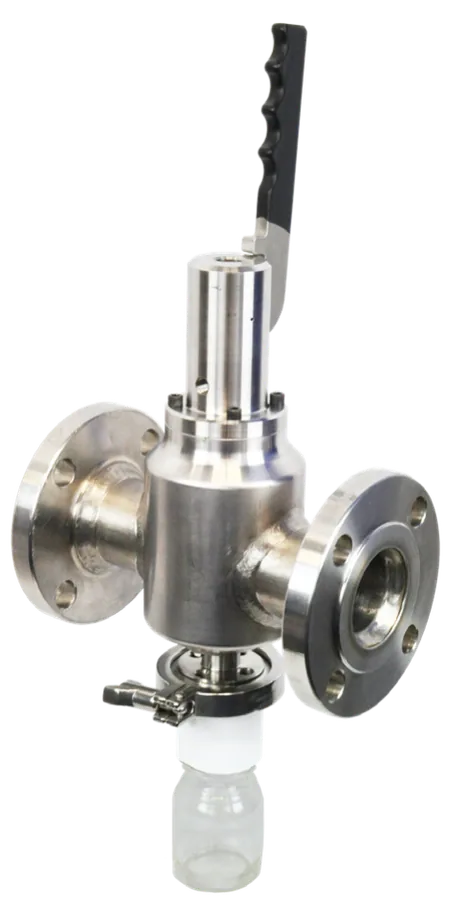

INLINE VALVE SAMPLING SYSTEM
The SENSOR Inline Valve Sampling System (IVSS) fits directly into the process piping system without the need to utilize, or create, a pressure differential to collect a sample. It can be designed to fit into 1”, 2” or 3” vertical or horizontal piping orientation. The IVSS can be configured to utilize a thread-in bottle or needles for a bottle with cap and septa.
The IVSS can be configured with a wafer or inline flanges providing the ability to be installed in virtually any piping system. The wafer configuration is designed to be sandwiched between two existing flanges. The inline version includes mating flanges on each end that can be specified to any required face-to-face dimension.
The valve has been designed with the user in mind. The easy to use pull-type lever allows the operator to control the flow of the liquid into the bottle while taking a sample. Immediately after the handle is released the valve springs closed forming a tight seal and terminating the flow of sample collection.
