TP Series Gas Pilot Torches (TP15 – TP76)
Gas pilot burners from 2 kW to 600 kW with high voltage or high energy ignition and optional ionisation flame detection; lengths made to order.
Supplied and supported in Singapore by Ronsor Engineering · +65 6779 2818 · Not sure it's the right one? Try the Product Finder

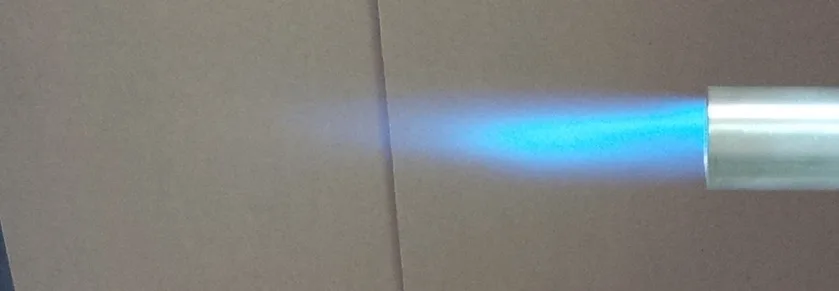

TESI’s TP series pilot burners suit both new installations and burner revamps. Each torch can carry a built-in high voltage or high energy ignition rod, and flame monitoring by ionisation rod, optical scanner or thermocouple. The ignition and ionisation parts can be removed without pulling out the whole pilot. Gas, oil and dual-fuel pilots are available, and dimensions are customised to the burner.
| Model | Diameter | Heat release | Flame length | Air | Ignition |
|---|---|---|---|---|---|
| TP15 | 15 mm | 2 – 7 kW | up to 100 mm | Venturi or forced | High voltage (± ionisation) |
| TP25 | 25 mm | 4 – 15 kW | up to 300 mm | Venturi or forced | High voltage (± ionisation) |
| TP32 | 26.7 – 32 mm | 20 – 45 kW | up to 500 mm | Venturi or forced | High voltage or high energy Ø12–14 mm |
| TP38 | 32 – 38 mm | 50 – 120 kW | up to 600 mm | Venturi or forced | High voltage or high energy Ø12–14 mm |
| TP60 | 60 mm | up to 250 kW | up to 1200 mm | Forced | High voltage or high energy up to Ø17 mm, ± ionisation |
| TP76 | 76 mm | up to 600 kW | up to 2000 mm | Forced | High voltage or high energy up to Ø17 mm, ± ionisation |
Lengths are made to order. Code format: TP…/L[length], with /V for the Venturi (self-aspirated) version.
Accessories: Venturi air inspirators, custom mounting flanges, side or coaxial pneumatic retraction devices, and UV/IR scanner amplifiers in place of ionisation rods.
