XEC 18-H Standard High Energy Power Unit
18 J high energy ignition power unit for gas and light oil burners in boilers, furnaces and gas turbines, in safe-area or ATEX enclosures.
Supplied and supported in Singapore by Ronsor Engineering · +65 6779 2818 · Not sure it's the right one? Try the Product Finder
The XEC 18-H is TESI’s standard high energy power unit. Its 18 J spark lights all fuel gases and light oil in boilers, furnaces and gas turbines, and it isn’t affected by contaminants or humidity on the tip.
| Specification | |
|---|---|
| Energy | 18 J |
| Supply | 115 / 230 Vac, 50 Hz (60 Hz on request) |
| Input power | 160 W / 320 W ±5% |
| Input current | RMS 2.5 A / 3.6 A (max. 9.5 A / 15.5 A) |
| Duty cycle | 20 s on, 40 s off, max. 3 times (33%) |
| Spark frequency | 2 sparks/second |
| Operating temperature | −5 to +60 °C (−30 °C special execution) |
| Dimensions | 235 × 135 × 110 mm |

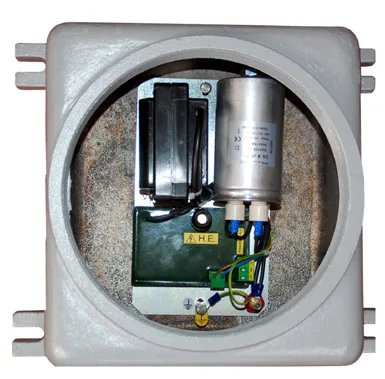

Enclosure options
| Enclosure | Rating |
|---|---|
| EJB | II2G Ex d IIB T5 IP66 (hazardous area) |
| GUB | II2G Ex d IIC T5 IP66 (hazardous area) |
| SA | IP66 (safe area) |
