LaserGas™ III

NEO LaserGas III TDLAS analyser for hazardous areas (IECEx/ATEX Zone 1, CSA Class I Div 2), SIL2-compatible, measuring NH₃, O₂, CO, CH₄ or H₂ in situ.

Built to order to your specification and supplied by Ronsor Engineering · +65 6779 2818 · Not sure it's the right one? Try the Product Finder

LaserGas™ III

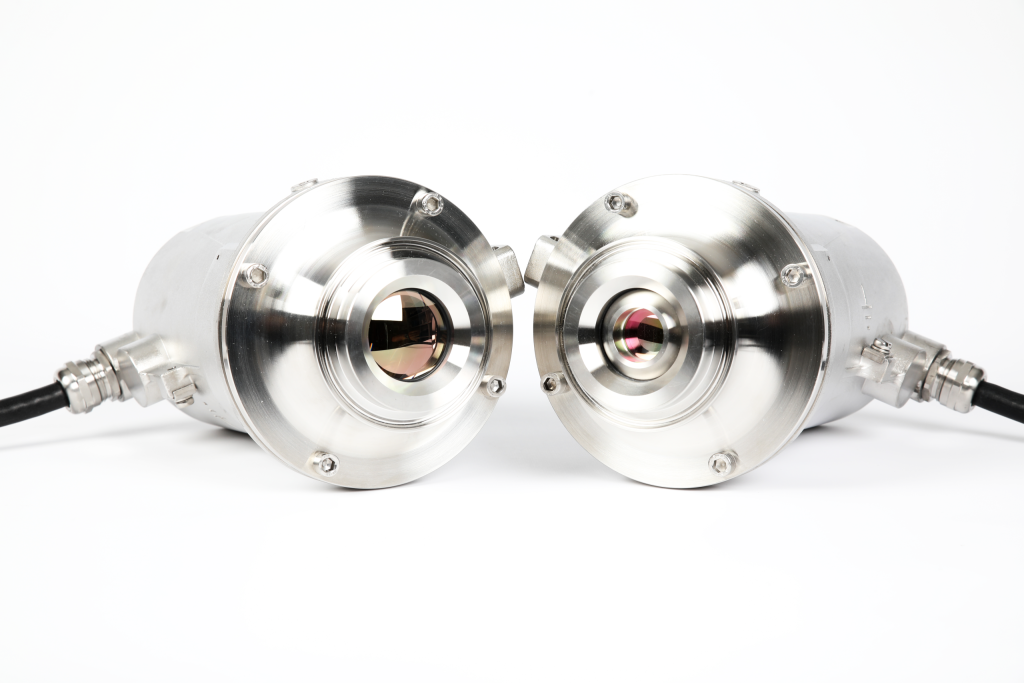

The LaserGas™ III range from NEO Monitors is a Tunable Diode Laser Absorption Spectroscopy (TDLAS) gas analyzer specifically designed for operation in certified hazardous areas (IECEx/ATEX/UKEx Zone 1, CSA Class I/Div 2 B,C,D) and has been independently assessed as compatible for use in SIL2 installations.

There are a few configurations of the LaserGas™ III that allow us to measure the following gases:

  • NH3
  • O2
  • O2 + temp
  • CO
  • CO + CH4
  • H2

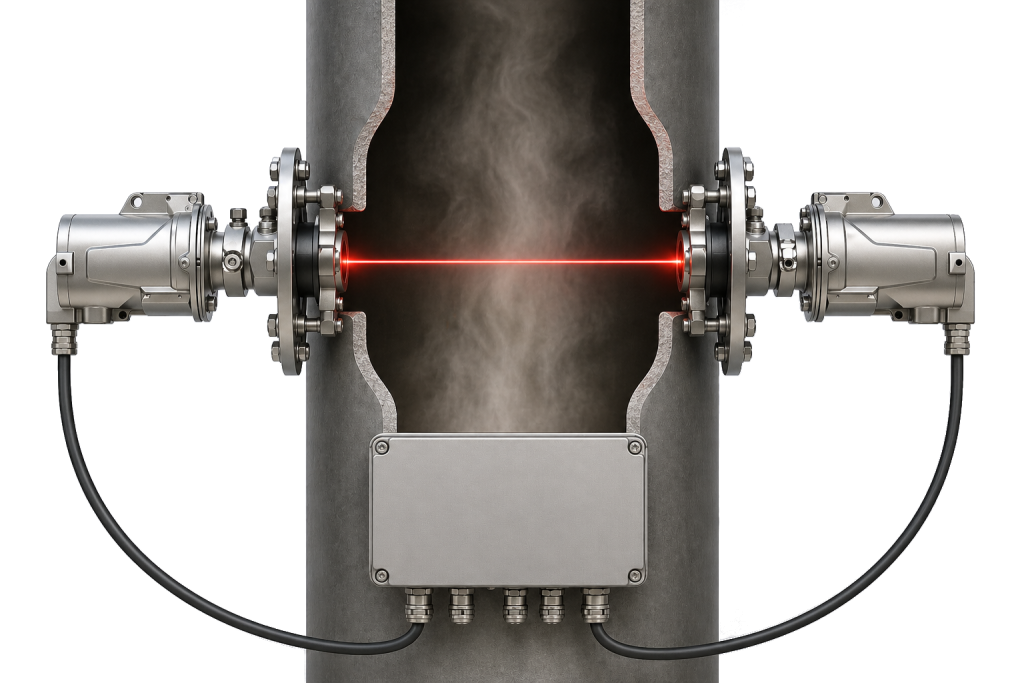

LaserGas™ III installation set-up. Image is AI generated and may not be 100% accurate.

LaserGas™ III installation set-up. Image is AI generated and may not be 100% accurate.

LaserGas™ III also comes in open path configurations as well for fenceline monitoring of the following gases:

  • NH3
  • HF
  • CO
  • CH4
  • H2S

Sulphur recovery units: for the Claus tail gas, NEO recommends the LaserGas™ III SP to measure H₂S, with a LaserGas™ Q ICL measuring SO₂, so the air demand can be trimmed to keep the H₂S:SO₂ ratio near 2:1. Steam-heated insertion tubes keep the optics above the sulphur dew point, and a T-flange lets the two analysers share one pair of nozzles. See sulphur recovery unit and in-situ tail gas analysis.

Additional Materials

LaserGas SP IIIDownload
LaserGas III Ultra SP CO2Download
LaserGas III OPDownload
